Subwoofer · Ported · Passive

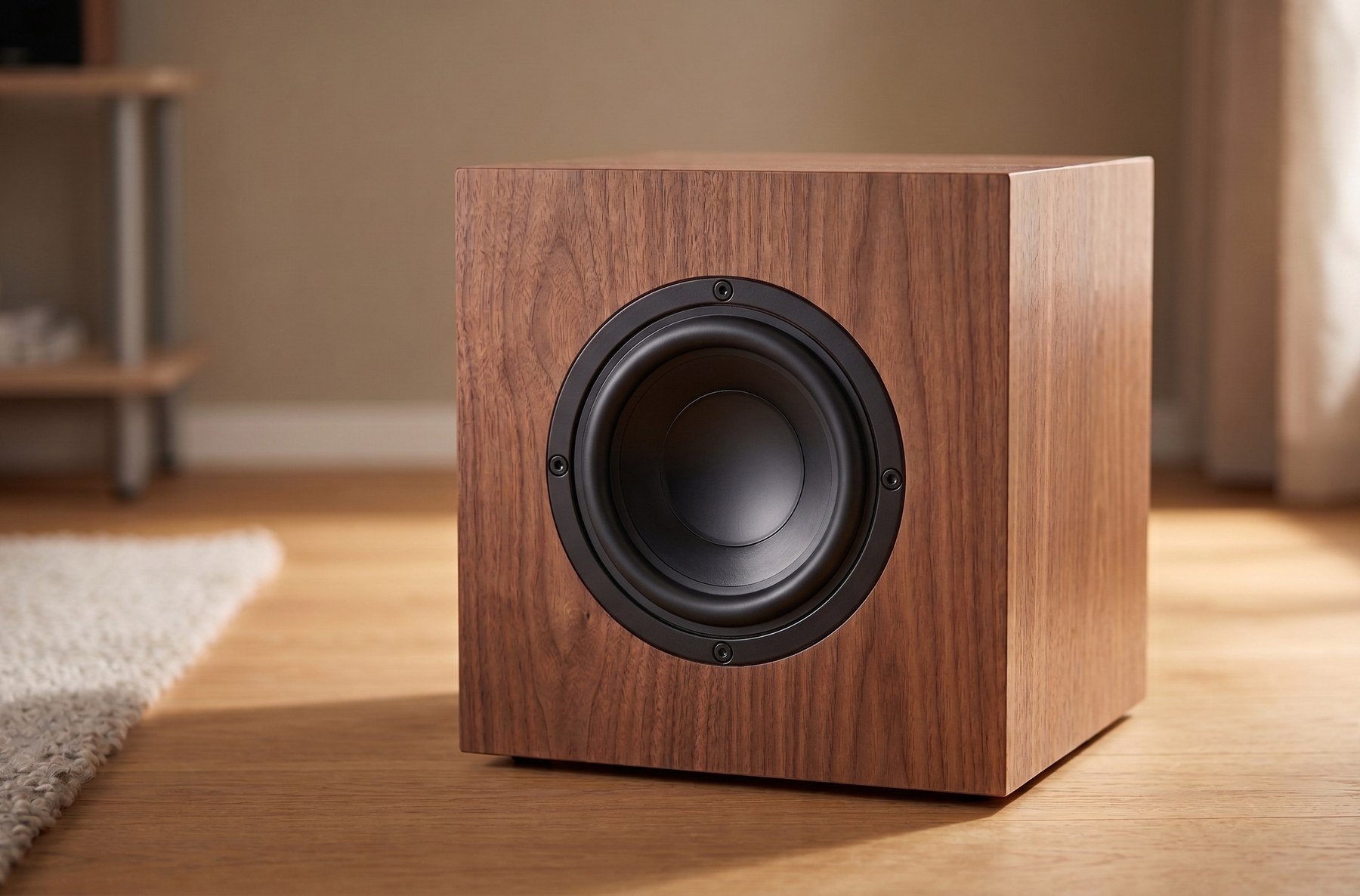

Hi-Fi Compact Subwoofer
Pairs well with
This is a passive subwoofer, it needs a separate amplifier to drive it. At least 40W is recommended to match its power handling.
Product info
| Type | Subwoofer · Ported · Passive |
| Power handling | 40W RMS |
| Impedance | 4Ω |
| Size | Under 35 × 35 × 35 cm (W×D×H) |
| Recommended amp power | 40W or more |
Detailed spec
| Driver | 5.25" |
| Sensitivity | 85 dB |
| Frequency range | 32 Hz - 500 Hz (-3dB at 32Hz) |
| Recommended low-pass | Below 250Hz, pairs well with most bookshelf speakers |
Frequency response
Not available yet. Add a real measurement (1/6 octave smoothed, gated, on-axis) here once you have one for this build.
Ideal use case
A desktop speaker addon, or an assisting sub for bookshelf speakers that could use a bit more low end. Also suited to Hi-Fi studio monitor setups at reference-level volume. Not built for loud playback, but it can work for low to mid-volume living room listening, just don't expect it to get very loud.
Sound
Flat, Hi-Fi grade bass, tuned for accuracy over impact. Reaching down to 32Hz is genuinely impressive for a cabinet this size, which is what makes it a solid pick for reference monitor use rather than just background thump.
Region availability
What's included in this plan
- • PDF assembly guide
- • Cutout templates
- • Bill of materials (BOM)
- • Purchase links to the required parts
Is this build right for you
- ✓ A desktop speaker addon sub
- ✓ An assisting sub for bookshelf speakers
- ✓ Hi-Fi studio monitor or reference use at low volume
- ✓ Low to mid-volume living room listening (won't get very loud)
- ✗ Home theater or loud playback
- ✗ Outdoor use
Ready to build this one?
Get this plan, $5
